Zenit Quarz 1x8S-1

From Super8wiki
Jump to: navigation, search

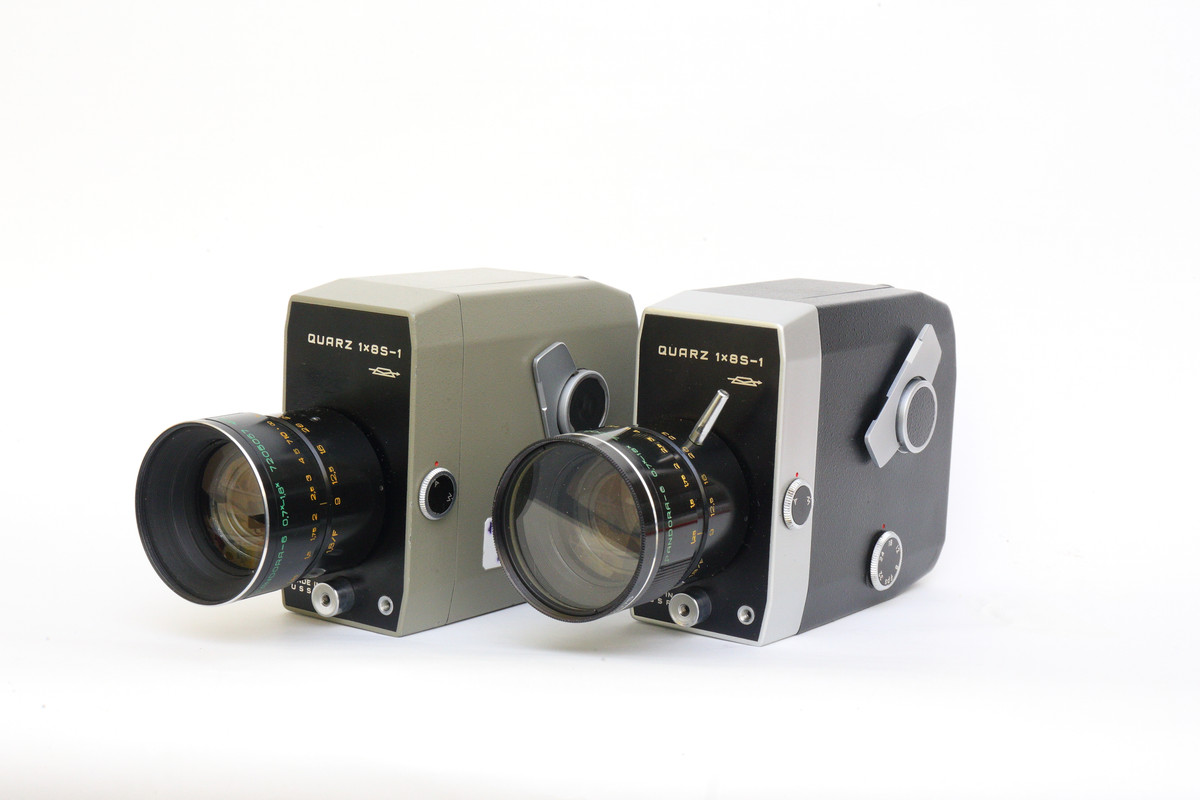

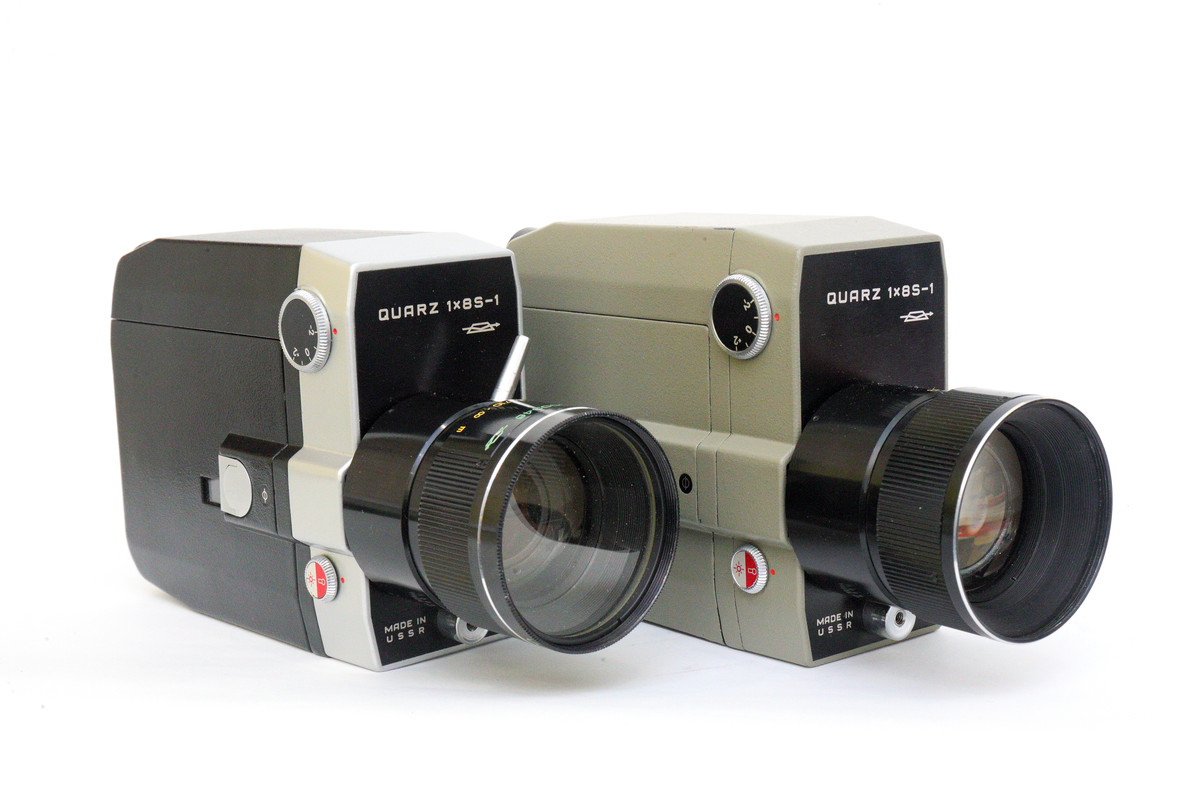

Zenit Quarz 1x8S-1

Year: 1974-77

Lens: Pandora 1,8 / 9 - 23 mm

Aerial Focusing

Manual Zoom

Frame rates: 8, 12, 18, 24, 32 + single frame

Manual / Auto Exposure

+/- correction for auto

Cable release socket

No sound

+ 2x1,3V for light meter

Made in USSR

Manufacturer: Zenit

Original price in England (in the year of introduction): £43

Made in USSR

Prices on eBay:

  • eBay USA:
    • $42 in 02/2000
  • eBay UK:
    • £5 in 08/2015


Comments[edit]

Predecessor of the "1x8S-2".

Features[edit]

English[edit]

Automatic exposure control with TTL light metering. Through-sight system.

Serial production: 1969–1975

Film used: Super-8 (1×8 mm) Loading system: Kodak-type cassette Cassette capacity: 15 m (50 ft) Lens: Focal length change range: 9 to 23 mm Relative aperture change range: 1:1.8 to 1:16 Eyepiece diopter adjustment: ±5 diopters Aperture control: automatic and manual Film sensitivity: ASA-40 and ASA-25 (with filter) Drive: spring Dimensions: 197×104×65 mm Weight: 1.25 kg Other: Device for entering corrections within ±2 exposure steps. The kit included light filters and attachment lenses. A total of 16,092 units were produced.



Russian[edit]

Автоматическая установка экспозиции со светоизмерением TTL. Система сквозного визирования.

Серийное производство: 1969–1975 годы

Применяемая киноплёнка: Супер-8 (1×8 мм) Система зарядки: кассета типа Кодак Ёмкость кассеты: 15 м (50 футов) Объектив: Диапазон изменения фокусного расстояния: от 9 до 23 мм Диапазон изменения относительного отверстия: от 1:1,8 до 1:16 Диоптрийная поправка окуляра: ±5 диоптрий Управление диафрагмой: автоматическое и ручное Светочувствительность плёнки: ASA-40 и ASA-25 (со светофильтром) Привод: пружинный Габаритные размеры: 197×104×65 мм Масса: 1,25 кг Прочее: Устройство ввода поправок в пределах ±2 экспозиционных ступени. В комплект входили светофильтры и насадочные линзы. Всего выпущено 16092 шт

Reviews[edit]

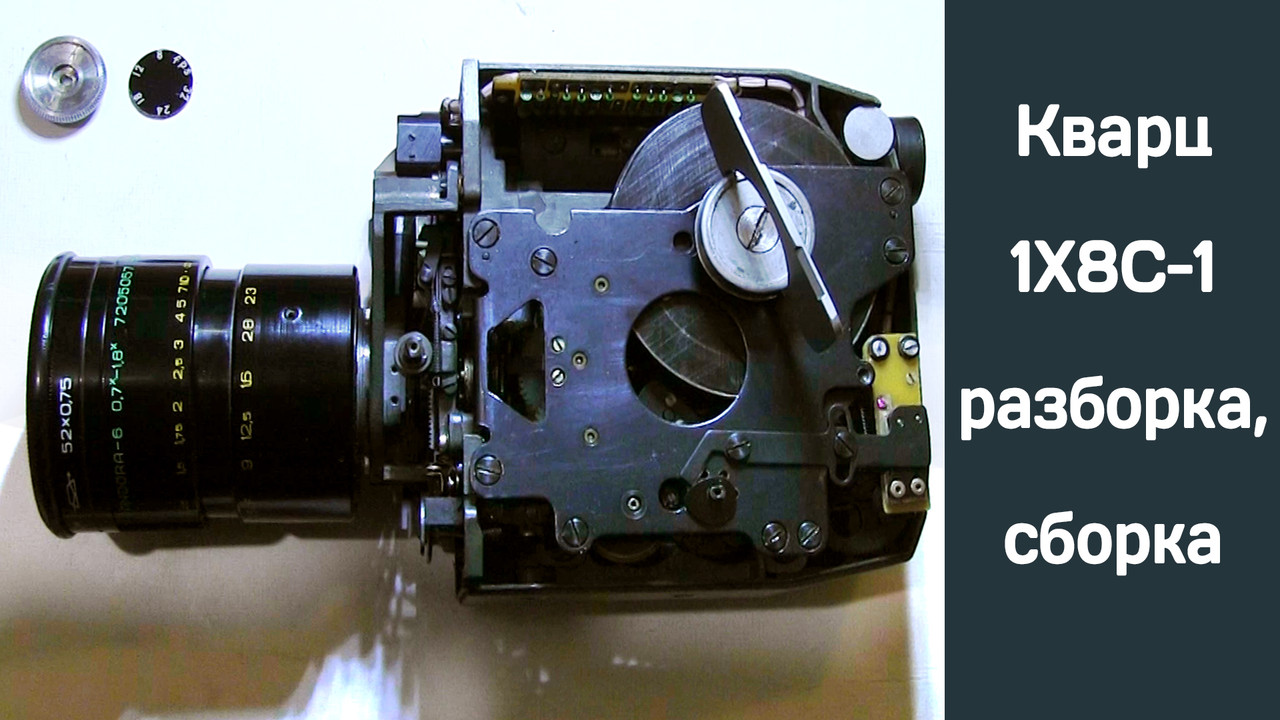

https://youtu.be/V6VY7tCXEI4
