Zenit Quarz DS8-M
From Super8wiki
| Quarz DS8-M | |
|---|---|
| |
| Quarz DS8-M | |
| Specifications | |
| Model | Quarz DS8-M |
| Format(s) | Double-Super8 (10m-reels) |
| Manufacturer | KMZ |
| Made in | USSR (Russia) |
| Produced | 1968 |
| Lens(es) | Anastigmat Jupiter-24-1 F1.9 12.5mm, but normally comes with two adapters: wide 0.5x= 6.25mm and tele 2.0x=25mm |
| Zoom | No |
| Macro | No |
| Frame rates | 12, 18, 24, 48 + single frame |
| Exposure | Manual Exposure with Non-TTL exposure meter (selenium photocell) built in |
| Focus | base lens: free focus or via distance marks on the lens with 0.5 x wide adapter: free focus |
| Film speeds (ASA/ISO) | manually set (GOST 16 - 180 or 12 - 100 ASA) |
| Shutter degree | approx. 190° |
| Sound (striped) | No |
| Sound (two-band) | No |
| Sound (optical) | No |
| Weight | 1.2 kg (2.8 kg with the standard set of included accessories) |
| Dimensions | 125mm x 70mm x 255mm |
| Power supply | No batteries needed - spring wound drive motor |
| Original price ($US) | please add |
| Original price (£) | please add |
| Original price (DM) | please add |
| Original price (Yen) | please add |
| Recent prices on eBay ($US) | please add |
| Recent prices on eBay (£) | please add |
| Recent prices on eBay (€) | please add |
Comments[edit]
This is a Double-Super8-Camera!!!
Manuals:
- English/German instruction manuals: http://www.super8aid.net/cameras.html
- Russian manual: http://www.zenitcamera.com/mans/quarz-2x8s-1m/quarz-2x8s-1m.html
Additional Information:

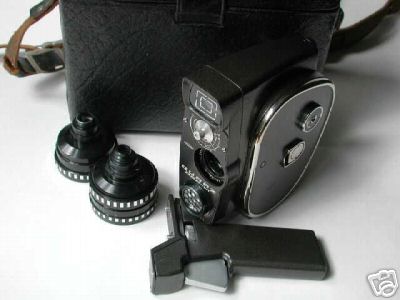

- Normally sold with a leather bag, the retractable pistol grip, the two adapters and a set of filters
- The non-TTL viewfinder also shows the exposure-meter's needle and has special marks for the use of the adapters.
- Shutter speed: 12fps-1/23s, 18fps-1/34s, 24fps-1/46s, 48fps-1/92s, single frame 1/34s
- The spring drive ensures 2m film run.
- Depth of field:
| F1.9 | F2.8 | F4.0 | F5.6 | F8.0 | F11 | F16 |
|---|---|---|---|---|---|---|
| 1.6m-inf | 1.2m-inf | 0.9m-inf | 0.7m-inf | 0.5m-inf | 0.4m-inf | 0.3m-inf |
Unfortunately the selenium photometer is known to go blind over the decades. However that doesn't matter as the exposure-meter only works for 18fps. So an external photometer (or a printed exposure-table for your film and shutter-speed) is a must even if the selenium photometer still works properly.
