Kodak M 4 Instamatic

Kodak M 4 Instamatic

Year: 1965-67

Lens: Ektanar 1.8 / 13 mm

Fixed Focusing

Frame rates: 18

Auto Exposure (Not TTL)

No sound

4 X AA batteries + PX-13 1.35V Battery for Metering (1.5V LR9's or PX625A work O.K.)

Made in USA

Manufacturer: Eastman Kodak

Prices on eBay:

• eBay USA:
  • $5.50 in 07/1999
  • $5.00 in 08/1999
  • $4.99 in 04/2010

Comments

Kodak's second Super 8mm camera, identical to the Kodak M-2 except that it has a built in meter. This camera does not have the notorious "cheese gears" and can be used to this day. Meter battery (PX625--required) is located in a pull-out slot in upper left hand battery compartment. Two simple screws open up interior for lube and cleaning.

Using EKTACHROME 64T

As the metering is not TTL, a .20 (2/3 stop) ND filter over the lens will allow the camera to expose correctly.

Using EKTACHROME 100D

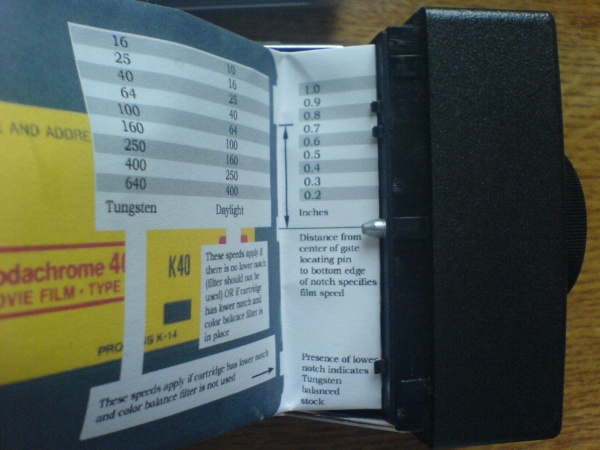

The camera will meter the film as ASA 64 unless the tungsten key is inserted on the top of the camera. This admits more light into the meter without adding a filter.
