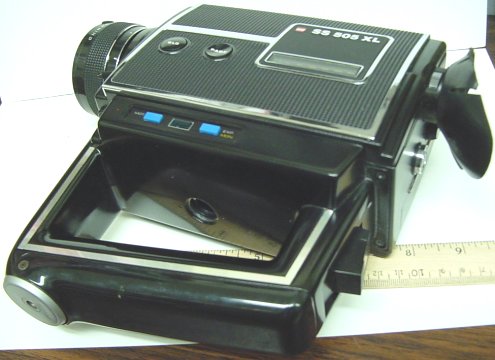

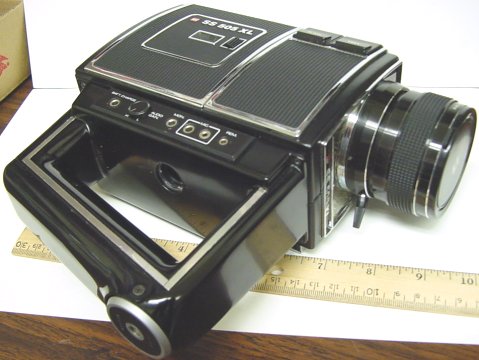

GAF SS 505 XL Sound

GAF SS 505 XL Sound

Lens: Chinon Reflex Zoom Lens f/1.2 - 8 to 40mm

Viewfinder: single-lens reflex with microprism focusing spot f/stop, over/underexposure signal, green LED record signal film advance and film end indicators eyepiece adjustment range: +2/-4 diopters

Exposure: CdS electric eye automatic with ±1 stop manual adjustment

ASA film speed range: Daylight ASA 25, 100 (160 with Type G film Tungsten light ASA 40, 160

Backlight exposure compensation: Pushbutton provides plus one stop exposure

Filming speed: 18 frames-per-second

Zoom: separate "Wide" and "Tele" power zoom switches, zoom ring handle for manual control

Battery tester: separate buttons activate signal lamp for motor and electric-eye/amplifier batteries

Footage indicator: sliding rule type, indicates feet from 0 to 50 and meters from 0 to 15 automatically returns to zero when cartridge is removed

Outlets: microphone - earphone monitor - remote control

battery charger / booster pack

Fade-in/Fade-out: pushbutton controlled fading action with indicator visible in viewfinder

Power sources: motor batteries: 9 volts provided by six 1.5 AA alkaline batteries rechargeable AA nickel-cadmium (nicad) batteries may also be used Amplifier/exposure meter battery: 6 volts silver-oxide (Eveready 544)

Movie light socket: 1/4 inch screw, coupled to Type A (daylight) filter, insertion of movie light automatically retracts filter. may also be retracted manually

Tripod socket: 1/4 inch

Weight with batteries 5-lb 2-oz (2.32 kg)
